렌즈 제품소개

제조사 Myutron
모델명 MGTL014
다운로드

 제품스펙

Mega Pixel Telecentric Lens

 제품상세



  • TELECENTRIC LENS
  • MGTL Series
  • Mega Pixel Telecentric Lens

    Suitable for Mega Pixel Sensor




    FEATURES



    • High resolution, compatible with Mega Pixel camera
    • Compact design, suitable for small device
    • MGTL05-1.1 is compatible with 1.1 inch
    • MGTL0275 is compatible with φ 12.8mm sensor
    • Adjustable iris, possible to adjust depth of field
    • TV distortion less than 0.05%
    • SPECIFICATION

        Model

      Mag.

      F No.

      NA

      WD

      OI

      D O F

      Resolution

      TV distortion

      sensor


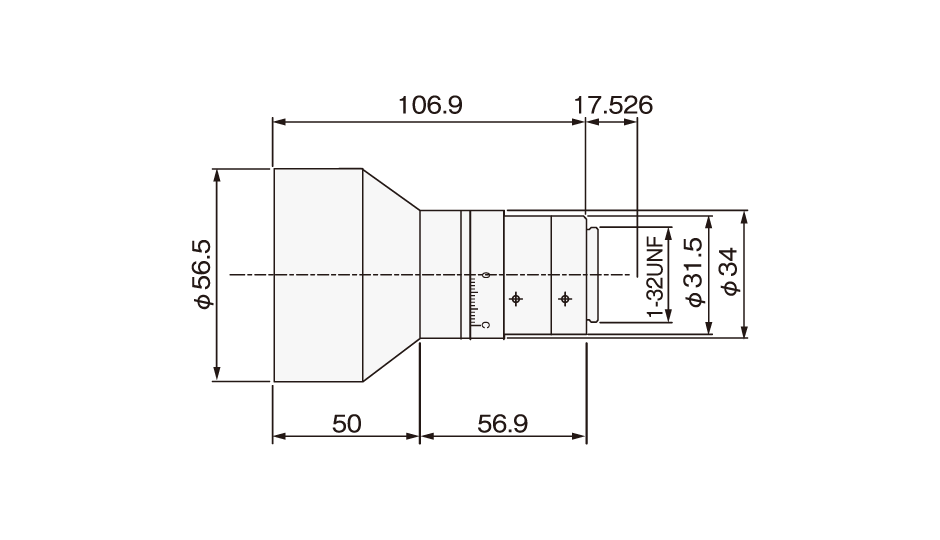

      MGTL014

      0.14x

      4.0

      0.017

      108mm

      231mm

      32.7mm

      19.7μ

      0.02%

      1/2





      MGTL019

      0.19x

       4.0

      0.024

      108mm

      236mm

      17.7mm

      14.0μ

      0.01%

      2/3





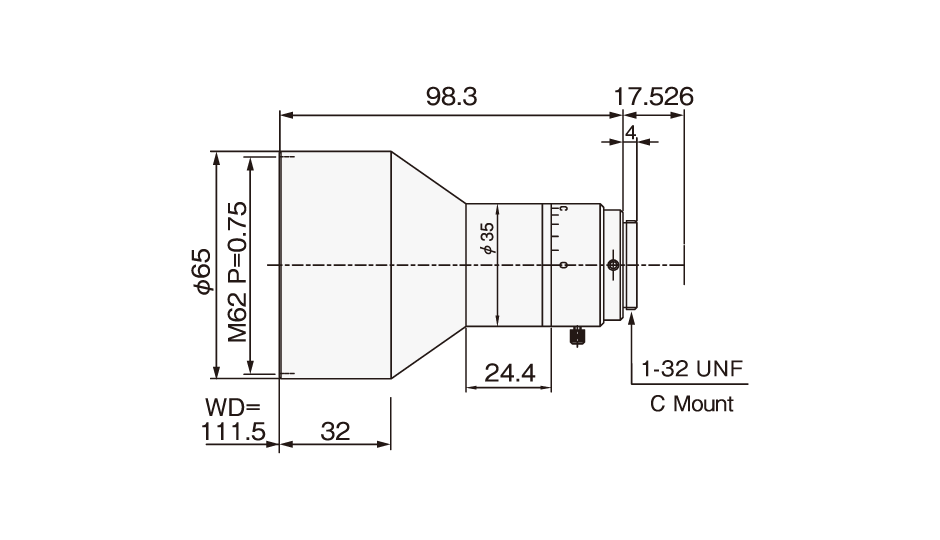

      MGTL023

      0.23x

      5.5

      0.021

      111mm

      227mm

      12mm

      16.0μ

      0.01%

      2/3





      MGTL0275

      0.275x

      7.6

      0.018

      110mm

      234mm

      8.1mm

      18.6μ

      0.00%

      2/3





      MGTL03

      0.3x

      7.0

      0.021

      110mm

       233mm

      6.2mm

      16.0μ

       0.05%

      2/3





      MGTL04

      0.4x

      9.2

      0.022

      110mm

      239mm

      4.6mm

      15.2μ

      0.00%

      2/3





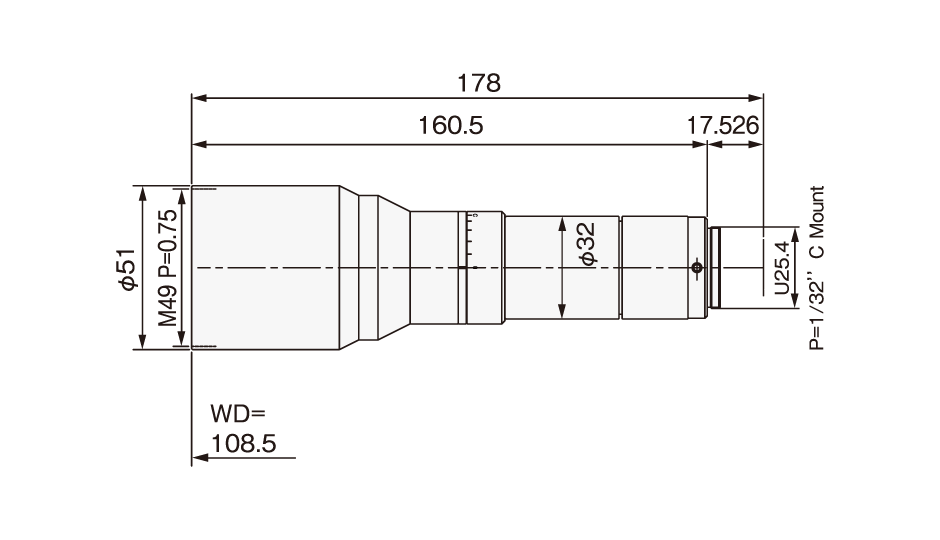

      MGTL05-1.1

      0.5x

      6.37

      0.039

      108mm

      286mm

      2mm

       8.6μ

      0.00%

      1.1

    ○Indicated specifications are design values.
    ○For C mount
    ○Depth of field is calculating assuming a horizontal 320 TV resolution using 1/2 inch camera (permissible circle of confusion 40μ).
    ○Depth of field of MGTL014, 019, and 023 indicate values at effective F No. 8
