VISION BOX 제품소개

제조사 HIK ROBOT
모델명 MV-VB2210-120G
다운로드

     제품스펙

    Intel Bay Trail Platform Vision Box

     제품상세

    MV-VB2210-120G

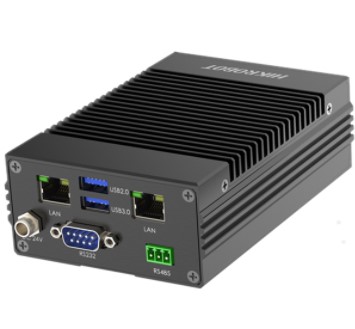

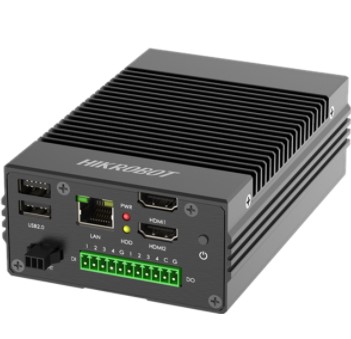

    Intel Bay Trail Platform Vision BoxMV-VB2210-120G LP.jpg MV-VB2210-120G LP 02.jpg

    Product Overview

    Key Feature

    • Onboard Intel E3845 SoC and 1.91GHz CPU

    • 4GB DDR3L memory and onboard SSD of high reliability

    • 3 Intel GigE ports and enhanced anti-surge design to ensure the stable running of the machine vision cameras

    • Supports multiple opto-isolated inputs and outputs

    • Controls the light via light interface

    • Adopts 2 HDMI interfaces and supports independent display


    Available Model

    MV-VB2210-120G


    Dimension



    *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.



    Specification
    • MV-VB2210-120G

    Model
    Name MV-VB2210-120G
    Type Intel Bay Trail Platform Vision Box
    Performance
    CPU Intel E3845, quad-core 1.91GHz
    Memory 4GB DDR3L-1333
    Storage 128GB SSD
    GPU Integrated Gen7 GPU; supports 3D image hardware acceleration; supports video decoding hardware acceleration of different formats
    Operating system Windows 7/10
    External interface
    Video output HDMI interface x 2; supports independent display; max. resolution: 2560 × 1600
    GPIO Opto-isolated input x 4, opto-isolated output x 4
    Light interface Voltage control x 1; output voltage: 24 VDC; max. power: 24 W
    Network interface RJ45 Intel I210 interface x 3
    USB interface USB3.0 x 1, USB2.0 x 3, supports 1 built-in extensible USB2.0
    Serial port Half-duplex RS-485 x 1, RS-232 x 1
    Electrical features
    Power supply 24 VDC/2.5 A
    Power consumption ≤ 34 W
    Structure
    Dimension 134.8 mm x 91 mm x 45 mm (5.3" x 3.6" x 1.8")
    Weight Approx. 650 g (1.4 lb.)
    Temperature 0 °C to 50 °C (32 °F to 122 °F)
    Humidity 20% to 80% RH, without condensation
    General
    Certifications CE, FCC, RoHS
