프레임그래버 제품소개

제조사 ADLINK

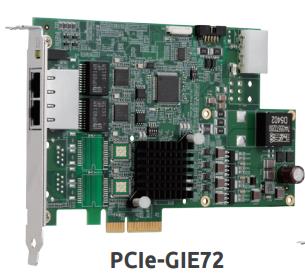

모델명 PCIe-GIE72
다운로드

 제품스펙

2CH PCI Express® GigE Vision PoE+ Frame Grabbers

 제품상세




 PCIe-GIE72/74

2/4-CH PCI Express® GigE Vision PoE+ Frame Grabbers



Key Features



  • PCI Express® x4 compliant
  • Support for 2/4 independent Gigabit Ethernet ports
  • IEEE 802.3at for PoE+ (Power over Ethernet Plus)
  • PoE protection and automated power budget control for enhanced asset protection
  • Easy-to-use utility and API provided for PoE power management
  • Multiple cards, multiple cameras, in a single system
  • Wide operating temperature range from 0°C to +70°C supporting non-drop frame capture in extreme environments
  • Up to 20/60/120W PoE power from PCIe bus/4-pin/6-pin Molex connector



Introduction

ADLINK's PCIe-GIE72/74 PCI Express® PoE+ frame grabber supports
2/4CH independent Gigabit Ethernet ports for multiple GigE Vision
connections transferring up to 1 Gb/s per port. PoE+ provides
up to 30W power and automatic detection for stable, reliable
connections, reducing costs, simplifying installation, and easing
maintenance burdens.



Highlights







Machine vision superiority with guaranteed non-drop frame grabs

Any number of PCIe-GIE7x series cards can be installed in a single system without occupying any BIOS I/O resources, enabling multi-card single-system non-drop machine vision frame grabs. range supports integration with fanless computer for IA applications in harsh environments.
PCIE-GIE72_74

Exclusive Comprehensive PoE protection secures assets

Exclusive comprehensive PoE protection design protects card and camera from overcurrent and overvoltage events. Automated power budget control adjusts PoE port power supply automatically, avoiding equipment damage.

Smart PoE management

Easy-to-use utility and API provide real-time PoE status monitoring and control, lowering maintenance costs and predicting possible failure in advance, while PoE power priority selection and PoE-based power on/off support more demanding applications.
PCIE-GIE72_74




 Ordering Information

  • PCIe-GIE72
    2-CH PCI Express X 4 Gen2 PoE+ GigE Grabber with Intel I210IT, PoE Protection, PoE Power Management
  • PCIe-GIE74
    4-CH PCI Express X 4 Gen2 PoE+ GigE Grabber with Intel I210IT, PoE Protection, PoE Power Management















설치 드라이버 다운로드

 PCIe-GIE72/74 Network Driver, Windows 32-bit, Version 21.0

 PCIe-GIE72/74 Network Driver, Windows 64-bit, Version 21.0
