HD high-definition Camera
| 제조사 | omron |
|---|---|
| 모델명 | HD high-definition Camera |
| 다운로드 |
|
제품스펙
DVI Output Color Camera
제품상세

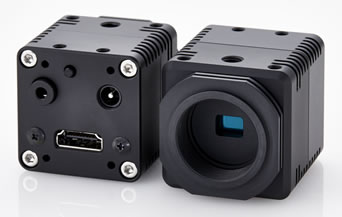

HD high-definition Camera
Description
DVI Output Color Camera
Features
Connectable to the monitor directly using HDMI connector enables observing system without PC enables a display of the crosshair and shadow masks by using the optional remote unit.
full High-Definition 1080P makes the acquisition of higher resolution images available.
Product Lineup
The model No. with background in below list, will be end when all stock has been sold.
| Model No. | Monochrome/Color | Resolution | Frame Rate | Effective Pixels (H x V, pixels) |
Sensor Size | Cell Size (H x V, μm) |
Sensor | Lens Mount | Note |
|---|---|---|---|---|---|---|---|---|---|
| STC-HD213DV | Color | Full HD 1080p | 60fps | 1920 x 1080 | 1/2.8" | 2.9 x 2.9 | IMX291 | C Mount | |
| STC-HD213DV-CS | 60fps | 1920 x 1080 | 1/2.8" | 2.9 x 2.9 | IMX291 | CS Mount | |||
| STC-HD213DVN | 60fps | 1920 x 1080 | 1/2.8" | 2.9 x 2.9 | IMX291 | C Mount | Non-memory model | ||
| STC-HD213DVN-CS | 60fps | 1920 x 1080 | 1/2.8" | 2.9 x 2.9 | IMX291 | CS Mount | Non-memory model | ||
| STC-HD213DVN-B | 60fps | 1920 x 1080 | 1/2.8" | 2.9 x 2.9 | IMX291 | C Mount | Non-memory / board model |
| Model No. | Monochrome/Color | Resolution | Frame Rate | Effective Pixels (H x V, pixels) |
Sensor Size | Cell Size (H x V, μm) |
Sensor | Lens Mount | Note |
|---|---|---|---|---|---|---|---|---|---|
| STC-HD93DV | Color | HD 720p | 60fps | 1280 x 720 | 1/3" | 4.08 x 4.08 | ICX692AQA | C Mount | |
| STC-HD93DV-CS | 60fps | 1280 x 720 | 1/3" | 4.08 x 4.08 | ICX692AQA | CS Mount | |||
| STC-HD93DV-B | 60fps | 1280 x 720 | 1/3" | 4.08 x 4.08 | ICX692AQA | C Mount |
Dimensions Drawings
STC-HD213DV
STC-HD213DVN
STC-HD213DVN
Unit:mm
STC-HD213DV-CS
STC-HD213DVN-CS
STC-HD213DVN-CS
Unit:mm
STC-HD93DV
Unit:mm
STC-HD93DV-CS
Unit:mm
STC-HD93DV-B
