High resolution telecentric lens
| 제조사 | Chiopt |
|---|---|
| 모델명 | High resolution telecentric lens |
| 다운로드 |
|
제품스펙
High resolution, ultra-high telecentric degree and ultra-low distortion
제품상세

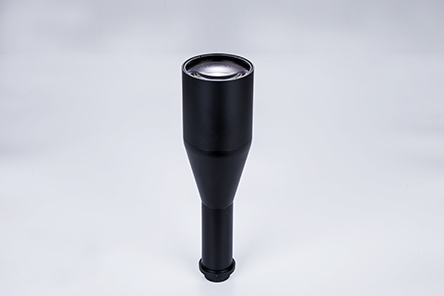

High resolution telecentric lens
High resolution, ultra-high telecentric degree and ultra-low distortion
Features of Products
Designed to correct the aberration of traditional industrial lens
Ordinary industrial lens cannot meet the requirement of detection, to make up for the shortage of ordinary lens application
Telecentric lens came into being to meet the needs of precision testing,
High resolution, ultra-high telecentric degree and ultra-low distortion
Standard C mount
Apllied in industrial inspection machine
Specification of Products
| Product NＯ. | Reduction Ratio | Max Image Circle | F/NO. | ob |
WD | FOV | TV Distortion | Telecentricity | TTL | Mount | Resolution | specification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC0501A | 0.188X | 2/3" | F6.8-40 | 0.0138 | 167 | 46.8×35.2×58.5 | ﹤0.014% | 0.08º | 411.75 | C | 10.6μ |  |
| TC0502A | 0.22X | 2/3" | F6.8-40 | 0.015 | 167 | 40.06×30.04×50 | ﹤0.003% | 0.08º | 390.63 | C | 18μ | |
| TC0503A | 0.367X | 4/3" | 5.9 | 0.0167 | 184.4 | 30.7×30.7×43.4 | ﹤0.1% | 0.08º | 429.2 | C | 18μ | |
