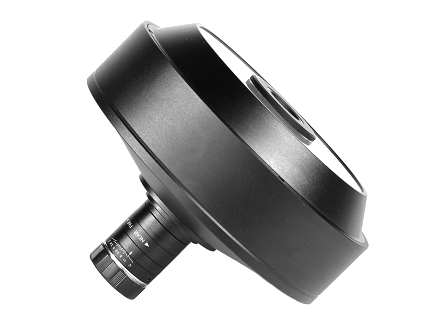

RF3601A 360° lenses
| 제조사 | Chiopt |
|---|---|
| 모델명 | RF3601A 360° lenses |
| 다운로드 |
|
제품스펙
Compact design and high resolution performance
제품상세
RF3601A 360° lenses
Compact design and high resolution performance
Features of Products
360 ° imaging system
Compact design and high resolution performance
For 360 ° side view imaging of small objects
Working distance: 19mm-46.2mm
Suitable for the inspection of components like pharmaceutical containers, plastic caps, pre-forms, bottle necks, screws and other threaded objects.
Specification of Products
| Model No | RF3601A | ||
| Detector Type | 1/3" | ||
| Image Size | 3.6 | ||
| Working Distance | 19-46.2 | ||
| FNo. | 6-16 | ||
| Diameter(mm) | Height(mm) | WD(mm) | FNo. |
| 7.5 | 4.6 | 46.2 | 16 |
| 10 | 6.8 | 42.2 | 12 |
| 15 | 10.9 | 34.5 | 10 |
| 20 | 15.3 | 26.9 | 8 |
| 25 | 19.54 | 19 | 6 |
Specification of Products
| Product NＯ. | specification |
|---|---|
| RF3601A |  |
