 RF3603A 360° lenses

제조사 Chiopt
모델명 RF3603A 360° lenses
다운로드

     제품스펙

    Compact design and high resolution performance

     제품상세

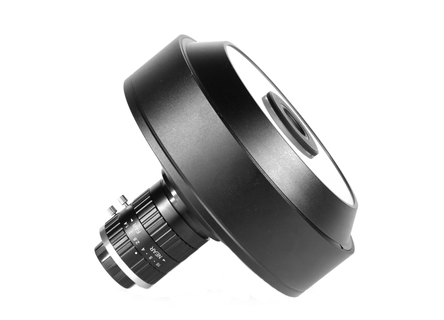

    RF3603A 360° lenses

    Compact design and high resolution performance




     Features of Products

      360 ° imaging system


      Compact design and high resolution performance


      For 360 ° side view imaging of small objects


      Working distance: 14mm-48.2mm


      Suitable for the inspection of components like pharmaceutical containers, plastic caps, pre-forms, bottle necks, screws and other threaded objects.


      Specification of Products


      Model   No RF3603A
      Detector Type 2/3"
      Image Size 6.6
      Working Distance 14-48.2
      FNo. 8-16
      Diameter(mm) Height(mm) WD(mm) FNo.
      7.5 4 48.2 16
      10 6.3 44.4 16
      15 10.6 36.8 12
      20 14.6 29.2 12
      25 19.2 21.6 10
      30 23.4 14 8


    Specification of Products
    Product NO. specification
    RF3603A product
