 Fixed lens for 1” ( 5 mega pixel)

제조사 Chiopt
모델명 Fixed lens for 1” ( 5 mega pixel)
다운로드

     제품스펙

     제품상세

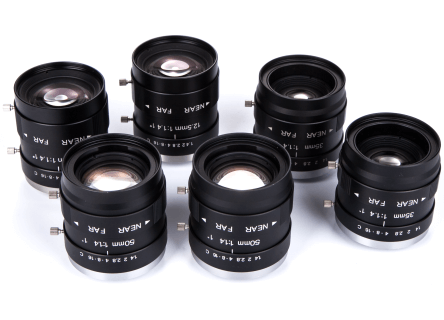

    Fixed lens for 1”FA

    High performace for 5 Mega piexl camera




     Features of Products



      High performace for 5 Mega piexl camera

      Fixed aperture and manual aperture can be selected

      Small volume

      TV Free distortion less than 1%

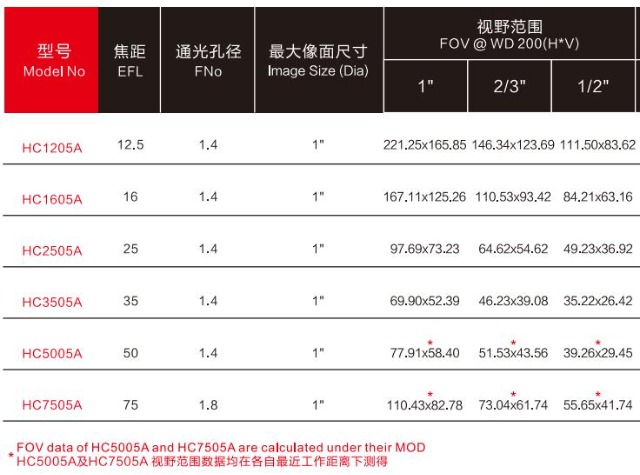

    Specification of Products
    Product NO. Image Size Resolution EFL F/NO. HxV TV Distortion M.O.D specification
    HC1205A 1" 5M 12.5mm 1.4~16 1":126.4x93,2/3":84.9x63,1/2":62.3x46.4 <1.8% 0.1m product
    HC2505A 1" 5M 25mm 1.4~16 1":65x48,2/3":44x33,1/2":32x24 <0.2% 0.1m product
    HC1605A 1" 5M 16mm 1.4~16 1":100x75,2/3":69x51,1/2":50x37 <0.1% 0.1m product
    HC3505A 1" 5M 35mm 1.4~16 1":73x55,2/3":50x38,1/2":37x27 <0.1% 0.15m product
    HC5005A 1" 5M 50mm 1.6~16 1":79.34x59.3,2/3":54.2x40.56,1/2":39.3x29.4 <0.1% 0.3m product
    HC7505A 1" 5M 75mm 1.8~16 1":133.7x100.2,2/3":91.9x68.9,1/2":66.8x50.1 <0.2% 0.8m product
