Fixed lens for 2/3” ( 5 mega pixel)
| 제조사 | Chiopt |
|---|---|
| 모델명 | Fixed lens for 2/3” ( 5 mega pixel) |
| 다운로드 |
|
제품스펙
제품상세

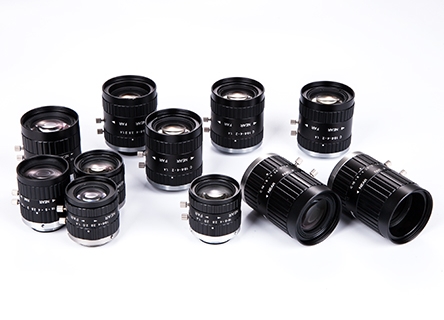

Fixed lens for 2/3" FA
High performace for 5 Mega piexl camera
Features of Products
nomo-focal for best image quality
High performace for 5 Mega piexl camera
Large aperture ratio for low illumination
TV Free distortion less than 1%
Focus range from 0.1M to Infinity
Higher relative illuminate rate at corner

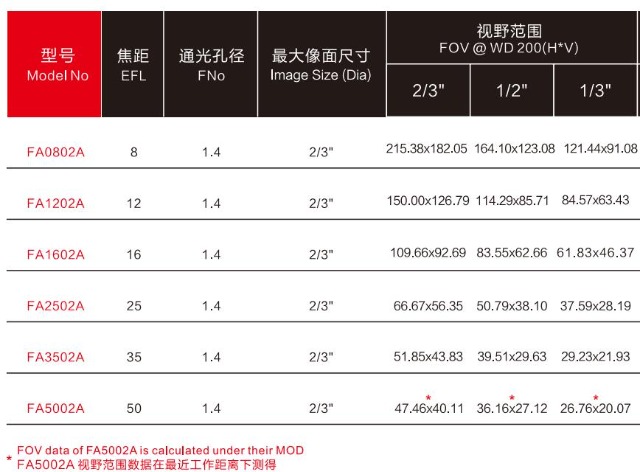

Specification of Products
| Product NＯ. | Image Size | Resolution | EFL | F/NO. | HxV | TV Distortion | M.O.D | specification |
|---|---|---|---|---|---|---|---|---|
| FA0802A | 2/3" | 5M | 8mm | 1.4~16 | 2/3"：123x91,1/2"：88x65.5 | <0.5% | 0.1m |  |
| FA1202A | 2/3" | 5M | 12.5mm | 1.4 | 2/3"：231.4x173,1/2"：167.7x125.5 | <-0.2% | 0.1m | |
| FA1602A | 2/3" | 5M | 16mm | 1.4~16 | 2/3"：170.4x127.6,1/2"：123.7x92.7 | <0.2% | 0.1m | |
| FA2502A | 2/3" | 5M | 25mm | 1.4~16 | 2/3"：108x82,1/2"：79.4x59.4 | <0.2% | 0.1m | |
| FA3502A | 2/3" | 5M | 35mm | 1.4~16 | 2/3"：81x60,1/2"：43.6x32.7 | -0.20% | 0.2m | |
| FA5002A | 2/3" | 5M | 50mm | 1.4 | 2/3"：124x92.9,1/2"：67.6x50.7 | <0.2% | 0.3m | |
