 Fixed lens for 2/3” (10mega pixel)

제품목록  E-Mail 견적문의  SMS 견적문의
제조사 Chiopt
모델명 Fixed lens for 2/3” (10mega pixel)
다운로드

     제품스펙

     제품상세

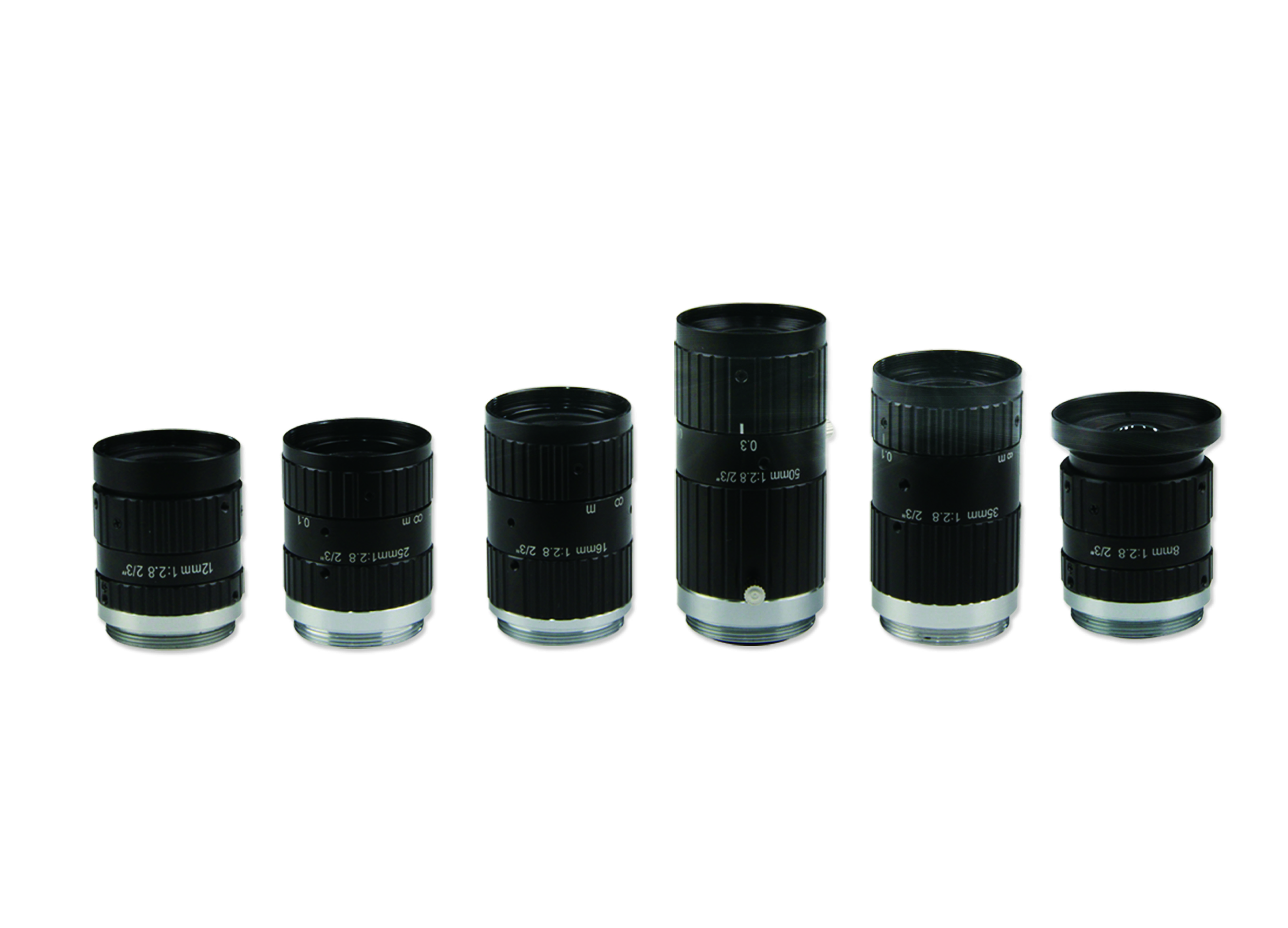

    Fixed lens for 2/3” (10mega pixel)

    High performace for 10Mega piexl camera


    Features of Products



      nomo-focal for best image quality

      High performace for 10Mega piexl camera

      Large aperture ratio for low illumination

      Free distortion less than 1%

      Focus range from 0.1M to Infinity

      Higher relative illuminate rate at corner

    Specification of Products
    Product NＯ. Image Size Resolution EFL F/NO. HxV TV Distortion M.O.D specification
    FA1210A 2/3 " 10M 12mm 2.8~16 2/3 "：153.8*115.4，1/2 "：111.9 *83.8， 1/3 "：83.8*62.7 2/3 ":<0.2%, 1/2 ":<0.1%, 1/3 "<0.03% 0.1m product
    FA0810A 2/3 " 10M 8mm 2.8~16 2/3 ":227.2*170.4, 1/2 ":166*124.5， 1/3 "：124.5*93.2 2/3 ":<1% ，1/2 ":<0.5%， 1/3 "<0.3 0.1m product
    FA1610A 2/3 " 10M 16mm 2.8~16 2/3 ":113.6*85.2, 1/2 ":83.1*62.3， 1/3 "：61.5*46.1 <0.1% 0.1m product
    FA2510A 2/3 " 10M 25mm 2.8~16 2/3 ":71.5*53.5, 1/2 ":51.6*38.7, 1/3 ":38.2*28.7 <0.1% 0.1m product
    FA3510A 2/3 " 10M 35mm 2.8~16 2/3 ":50.7*38, 1/2 ":36.8*27.6, 1/3 ":27.2*20.4 2/3 ":<0.1%, 1/2 ":<0.05%, 1/2 ":<0.03% 0.1m product
    FA5010A 2/3" 10M 50mm 2.8~16 2/3 ":46.8*35.1, 1/2 ":35.7*25.2, 1/3 ":25.5*19.1 2/3 ":<-0.1%, 1/2 ":<-0.1%, 1/3 ":<0.3% 0.3m product
