    IFHA-100Square Dome Light – IFHA series

     제품상세

    IFHA-100

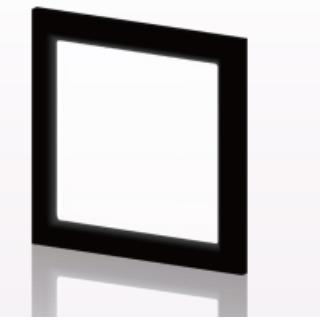

    Square Dome Light

    IFHA LP01.jpg





    IFHA-100Square Dome Light – IFHA series

    IFHA-100

    Model IFHA-100R IFHA-100W IFHA-100B IFHA-100G
    Item Number 357-040 357-041 357-042 357-048
    Color red white blue green
    Color temperature/Peak Wavelength 630nm typ. 5000K typ. 465nm typ. 520nm typ.
    Input Voltage DC12V
    Power Consumption 22W 15W
    SAG Setting Value C3 BC A5 BE
    Cable Length 500mm
    Input Connector SM connector(SMR-02V-B)
    Polarity 1:+ 2:-
    Ambient Temperature 0~+40℃
    Ambient Humidity 35~85% (non condensing)
    Weight 270g
    Adaptable Compliance RoHSChina RoHS Mark2CEIEC62471
    Cables
    Controllers

    Please check the output voltage of the compatible power supply.
