2 Mega-Pixel Lens (Manual Iris Lens, compatible with 2 mega-pixel cameras)

FL-CC0814A-2M

Format size		2/3" format
Focal length		8 mm
Maximum aperture ratio		1：1.4
Iris range		1.4-16
Mount		C
Horizontal angle of view	1/3" format	32.6°
	1/2" format	42.7°
	1/1.8" format	47.4°
	2/3" format	56.3°
Minimum object distance		0.1 m
Back focal length		11.1 mm
Filter size		40.5 P=0.5 mm

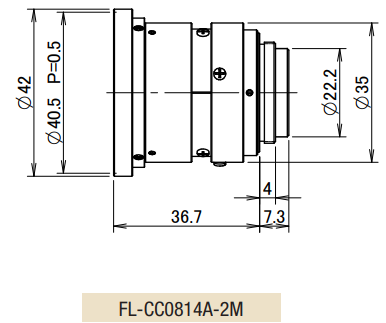

Dimensions		φ42×36.7 mm
Weight		76 ｇ
Remarks		Focus & Iris lock screws
