 AF5028M-M42

제품목록  E-Mail 견적문의  SMS 견적문의
제조사 HIK ROBOT
모델명 AF5028M-M42
다운로드

     제품스펙

    APS-C 50mm Focal Length FA LENS

     제품상세

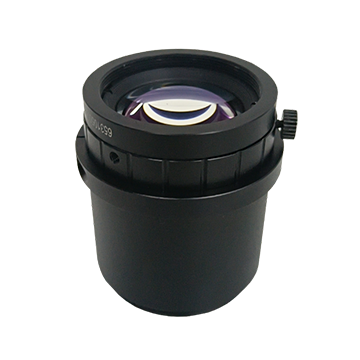

    AF5028M-M42

    APS-C 50mm Focal Length FA LENS








     Introduction

     Key Feature

    • Ultra-high resolution and consistency of image clarity

    • Large aperture, low distortion and high relative illumination

    • Maximum image circle φ30mm, applicable to APS-C area scan and 4K 7μm line scan cameras


    Available Model

    AF5028M-M42


    Dimension


    *The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.

    Specifications

    Model Model AF5028M-M42
    Type APS-C 50mm Focal Length FA LENS
    Performance Focal Length 50 mm
    F-Number F2.8 ~ F16
    Image Size Φ30 mm
    Distortion 0.32%
    Minimum Operation Distance 0.25 m
    Magnification Range 0.07x ~ 0.13x
    Field of View 4K 7μm（28.7 mm）：32°
    Mechanical Iris Control Manual
    Focus Control Manual
    Filter Thread M37*0.75
    Mount M42 × P1
    Flange Back Length 12 mm
    Dimension Φ50 × 61.4 mm
    Weight 151.5 g
    Temperature -10 ~ 50℃
    General Certification RoHS2.0
