MV-LE200-*W24
| 제조사 | HIK ROBOT |
|---|---|
| 모델명 | MV-LE200-*W24 |
| 다운로드 |
제품스펙
제품상세
HIKROBOT

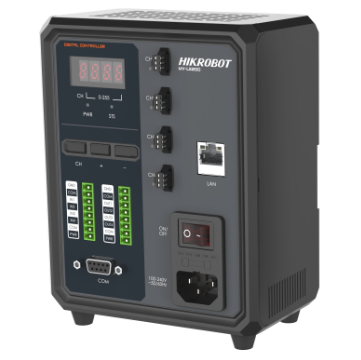

MV-LE200-*W24 Introduction
MV-LE200-*W24 digital light controller supports outputting multichannel light sources and different control modes of light source. It provides I/O connectors, device management interface, and corresponding light source controller software. The digital light controller helps users realize fast and convenient deployment of light source on site.
Key Features
Supports different control modes of light source, including control panel and software.
Supports using serial port or network interface to set parameters and manage the device.
Provides multiple I/O interfaces for external trigger.
Supports installation via slide rail or hole.
Supports overcurrent, overload, short circuit protection.
Available Model
-
• 4-channel, output power 200 W: MV-LE200-200W24-4TD
-
• 4-channel, output power 120 W: MV-LE200-120W24-4TD
-
• 4-channel, output power 60 W: MV-LE200-60W24-4TD
-
• 6-channel, output power 90 W: MV-LE200-90W24-6D
-
• 2-channel, output power 48 W: MV-LE200-48W24-2D
Specification
|
Model |
MV-LE200-200W24-4TD |
MV-LE200-120W24-4TD |
MV-LE200-60W24-4TD |
|
Performance | |||
|
Drive mode |
Digital, constant voltage | ||
|
Lighting mode |
Continuous, strobe | ||
|
PWM frequency |
125 kHz | ||
|
Strobe overdrive |
Not support | ||
|
Channel |
4-channel | ||
|
Dimming mode |
Control panel (via pressing button), software (serial port or network interface) | ||
|
Brightness level |
0 to 255 | ||
|
Lighting response time |
< 10 ps |
25 ps to 35 ps | |
|
Trigger mode |
External trigger and internal trigger | ||
|
Communication protocol |
UDP Serial | ||
|
Applicable product |
Ring light, bar light, flat light, coaxial light, etc. | ||
|
Electrical feature | |||
|
Input voltage |
100 VAC to 240 VAC, 50 Hz/60 Hz | ||
|
Input current |
1.8 A (115 VAC) 1 A (230 VAC) |
|
1.8 A (115 VAC) 1 A (230 VAC) |
|
Output voltage |
24 VDC | ||
|
Output current |
Max. 8.3 A |
Max. 5 A |
Max. 2.5 A |
|
Output power |
Max. 200 W |
Max. 120 W |
Max. 60 W |
|
Output current for each channel |
Max. 3 A |
Max. 2.5 A | |
|
Trigger in |
High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC | ||
|
Trigger out |
High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC | ||
|
Mechanical | |||
|
Power supply interface |
C13 220 VAC interface | ||
|
Console interface |
RJ45 network interface, DB9F serial port | ||
|
Digital I/O |
Opto-isolated input x 4; Opto-isolated output x 4 | ||
|
Lighting output connector |
SMR-03V-BC | ||
|
Dimension |
130 mm x 83.8 mm x 169.5 mm (5.1" x 3.3" x 6.7") | ||
|
Shell material |
Plastic | ||
|
Weight |
Approx. 733 g (1.6 lb.) | ||
|
Temperature |
Working temperature: 0 °C to 40 °C (32 °F to 104 °F) | ||
|
Humidity |
20% RH to 85% RH (no condensation) | ||
|
Ingress protection |
IP30 | ||
|
Cooling mode |
Fan cooling | ||
|
General | |||
|
Certification |
CE, KC | ||
Specification
|
Model |
MV-LE200-90W24-6D |
MV-LE200-48W24-2D |
|
Performance | ||
|
Drive mode |
Digital, constant voltage | |
|
Lighting mode |
Continuous, strobe | |
|
PWM frequency |
125 kHz | |
|
Flash output |
Not supported | |
|
Channel |
6-channel |
2-channel |
|
Dimming mode |
Control panel (via pressing button), software (serial port) | |
|
Brightness level |
0 to 255 | |
|
Lighting response time |
< 10 ps | |
|
Trigger mode |
External trigger and internal trigger | |
|
Communication protocol |
Serial | |
|
Applicable product |
Ring light, bar light, flat light, coaxial light, etc. | |
|
Electrical feature | ||
|
Input voltage |
24 VDC | |
|
Input current |
4.7 A |
2.5 A |
|
Output voltage |
24 VDC | |
|
Output current |
Max. 3.75 A |
Max. 2 A |
|
Output power |
Max. 90 W |
Max. 48 W |
|
Output current for each channel |
Max. 3 A |
Max. 2 A |
|
Trigger in |
High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC | |
|
Trigger out |
High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC | |
|
Mechanical | ||
|
Power supply interface |
5.08 mm x 2 terminal block | |
|
Console interface |
DB9F serial port | |
|
Digital I/O |
Opto-isolated input x 6 Opto-isolated output x 2 |
Opto-isolated input x 2 Opto-isolated output x 2 |
|
Lighting output connector |
SMR-03V-BC | |
|
Dimension |
90 mm x 54.1 mm x 139.5 mm (3.5" x 2.1" x 5.5") | |
|
Shell material |
Plastic | |
|
Weight |
Approx. 205 g (0.5 lb.) |
Approx. 188 g (0.4 lb.) |
|
Temperature |
Working temperature: 0 °C to 40 °C (32 °F to 104 °F) | |
|
Humidity |
20% RH to 85% RH (no condensation) | |
|
Ingress protection |
IP30 | |
|
Cooling mode |
Natural cooling | |
|
General | ||
|
Certification |
CE, KC | |
