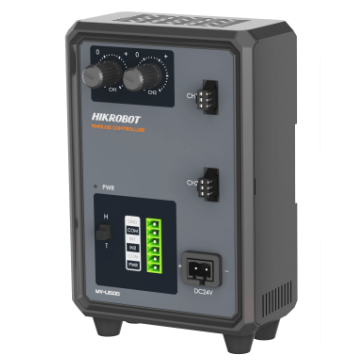

MV-LE100-*W24  Analog Light Controller

Introduction

MV-LE100 analog light controller supports infinitely variable brightness and outputting multichannel light
sources. It provides trigger input connectors, device management interface, etc. The analog light controller
helps users realize fast and convenient deployment of vision light source on site.

Key Feature

• •  Adopts constant voltage control and supports infinitely variable brightness.

• •  Adopts knob control on control panel, and plug and play.

• •  Provides multichannel opto-isolated inputs.

• •  Supports installation via slide rail or screw hole.

• •  Supports overcurrent, overload, and short circuit protection.

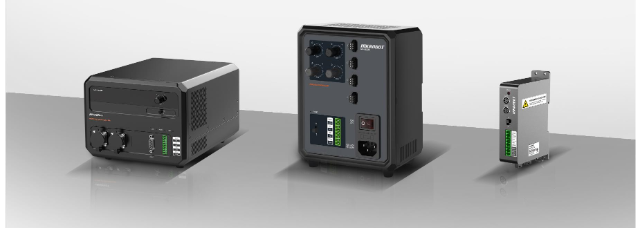

Available Model

• •  2-channel, output power 24 W: MV-LE100-24W24-2

• •  2-channel, output power 48 W: MV-LE100-48W24-2

• •  4-channel, output power 60 W: MV-LE100-60W24-4D

• •  4-channel, output power 120 W: MV-LE100-120W24-4

• •  2-channel, output power 200 W: MV-LE100-200W24-2BD (lighting output connector: 12M-2F)

• •  1 -channel, output power 500 W: MV-LE100-500W24-1ED (lighting output connector: 19M-2H)

Specification

Model	MV-LE100-24W24-2	MV-LE100-48W24-2	MV-LE100-60W24-4D
Performance
Drive mode	Analog, constant voltage
Lighting mode	Continuous, strobe
Channel	2-channel		4-channel
Dimming mode	Control panel (knob)		Control panel (knob), software (serial port)
Lighting response time	< 550 ps		< 300 ps
Trigger mode	External trigger
Applicable product	Ring light, bar light, flat light, coaxial light, etc.
Electrical feature
Input voltage	20 VDC to 24 VDC	24 VDC	100 VAC to 240 VAC, 50 Hz/60 Hz
Input current	1.5 A	2.5 A	1.8 A (115 VAC) 1 A (230 VAC)
Output voltage	24 VDC
Output current	Max. 1 A	Max. 2 A	Max. 2.5 A
Output power	Max. 24 W	Max. 48 W	Max. 60 W
Output current for each channel	Max. 0.5 A	Max. 1 A	Max. 1.2 A
Trigger in	High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC
Mechanical
Power supply interface	3.5 mm x 2 terminal block	5.08 mm x 2 terminal block	C13 220 VAC interface
Digital I/O	Opto-isolated input x 2		Opto-isolated input x 4
Lighting output connector	SMR-03V-BC
Dimension	24 mm x 70 mm x 106 mm (0.9" x 2.8" x 4.2")	90 mm x 63.2 mm x 139.5 mm (3.5" x 2.5" x 5.5")	130 mm x 92.9 mm x 169.5 mm (5.1" x 3.7" x 6.7")
Shell material	Plastic
Weight	Approx. 162 g (0.4 lb.)	Approx. 235 g (0.5 lb.)	Approx. 700 g (1.5 lb.)
Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity	20% RH to 85% RH (no condensation)
Ingress protection	IP30
Cooling mode	Natural cooling	Fan cooling
General
Certification	CE, KC

Specification

Model	MV-LE100-120W24-4	MV-LE100-200W24-2BD	MV-LE100-500W24-1ED
Performance
Drive mode	Analog, constant voltage
Lighting mode	Continuous, strobe
Channel	4-channel	2-channel	1-channel
Dimming mode	Control panel (knob)	Control panel (knob), software (serial port)
Lighting response time	< 100 ps		< 10 ps
Trigger mode	External trigger
Applicable product	Ring light, bar light, flat light, coaxial light, etc.	Ring light, bar light, flat light, coaxial light, etc. Applicable light interface: 12M-2A	Flat light with hole Applicable light interface: 19M-2A
Electrical feature
Input voltage	100 VAC to 240 VAC, 50 Hz/60 Hz
Input current	2.1 A (115 VAC) 1.2 A (230 VAC)	1.8 A (115 VAC) 1 A (230 VAC)	5 A (115 VAC) 2.5 A (230 VAC)
Output voltage	24 VDC
Output current	Max. 5 A	Max. 8.4 A	Max. 18 A
Output power	Max. 120 W	Max. 200 W	Max. 432 W
Output current for each channel	Max. 3 A	Max. 6 A	Max. 18 A
Trigger in	High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC
Mechanical
Power supply interface	C13 220 VAC interface
Digital I/O	Opto-isolated input x 4	Opto-isolated input x 2	Opto-isolated input x 1
Lighting output connector	SMR-03V-BC	12M-2F	19M-2H
Dimension	130 mm x 92.9 mm x 169.5 mm (5.1" x 3.7" x 6.7")		347.6 mm x 180 mm x 150.8 mm (13.7" x 7.1" x 5.9")
Shell material	Plastic
Weight	Approx. 795 g (1.8 lb.)	Approx. 820 g (1.8 lb.)	Approx. 4.4 kg (9.7 lb.)
Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity	20% RH to 85% RH (no condensation)
Ingress protection	IP30
Cooling mode	Fan cooling
General
Certification	CE, KC
