점 조명 MV-LDSS-H
| 제조사 | HIK ROBOT |
|---|---|
| 모델명 | 점 조명 MV-LDSS-H |
| 다운로드 |
제품스펙
제품상세

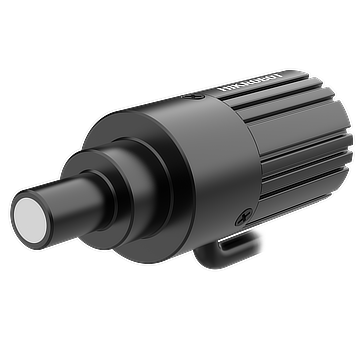

HIKROBOT MV-LDSS-H Standard Spot Light
MV-LDSS-H standard spot light adopts efficient light-guiding design and highlight LED. With new shape and heat-dissipation design, the spot light features high stability and long service life.
Key Features
The light outlet adopts efficient light-guiding design and highlight LED.
Adopts compact size and high heat-dissipation structural design.
Can be matched with telecentric series lenses.
Naming Rule
ex) MV - LDSS - H - 8 - 3 - *
LDSS: standard spot light
H: Hikrobot style series
8: optical outlet diameter
3: power
*: color
| Color | Center illuminance/irradiance | Best working distance | Dimension | Optical outlet diameter | Power | Input current | ||
| MV-LDSS-H-8-3-W | White | > 20K lux @ WD = 100 mm | 65 mm to 200 mm | 59 mm × Ø24 mm | Ø8 mm | 2 W | 680 mA | |
| MV-LDSS-H-8-3-B | Blue | > 4K lux @ WD = 100 mm | 65 mm to 200 mm | 59 mm × Ø24 mm | Ø8 mm | 2.1 W | 680 mA | |
| MV-LDSS-H-8-3-R | Red | > 7K lux @ WD = 100 mm | 65 mm to 200 mm | 59 mm × Ø24 mm | Ø8 mm | 1.7 W | 680 mA | |
| MV-LDSS-H-8-3-G | Green | > 25K lux @ WD = 100 mm | 65 mm to 200 mm | 59 mm × Ø24 mm | Ø8 mm | 2.1 W | 680 mA | |
| MV-LDSS-H-8-3-Y | Yellow | > 20K lux @ WD = 100 mm | 65 mm to 200 mm | 59 mm × Ø24 mm | Ø8 mm | 2 W | 680 mA | |
| MV-LDSS-H-8-3-IR1300 | IR1300 | > 12 W/m2 @ WD = 100 mm | 65 mm to 200 mm | 59 mm × Ø24 mm | Ø8 mm | 1.1 W | 800 mA | |

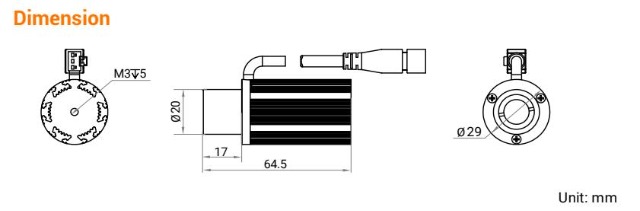

Dimension
*The data herein may vary based on the environment, objects and other various factors, and HIKROBOT shall not assume the consequences arising therefrom.
