제조사 HIK ROBOT
모델명 라인스캔 조명 MV-LTDS-H
다운로드

     제품스펙

    Line-Scan Light

     제품상세

    Catalog   Download

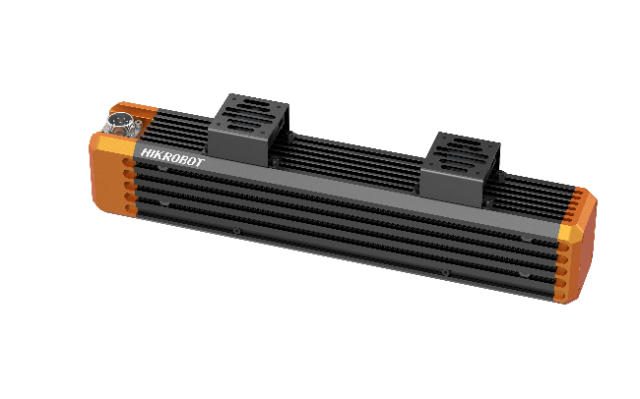

    MV-LTDS-H ListPic.png

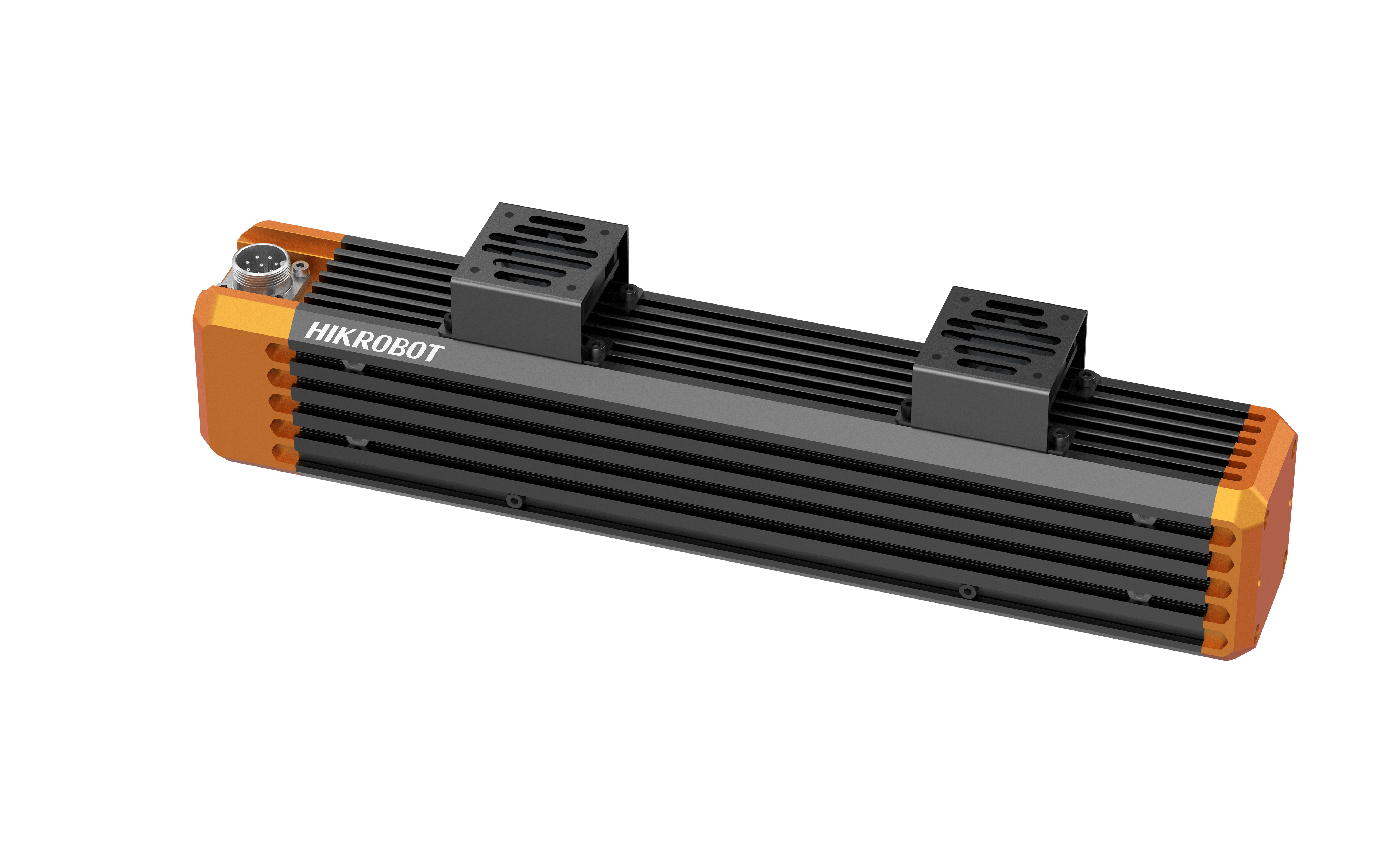

    HIKROBOT  MV-LTDS-H  Line-Scan Light

    MV-LTDS-H series line-scan lights adopt LED lamp beads with high brightness and high power, featuring flexible installation and efficient focusing. With the combination of structural cooling and fan cooling, every line-scan light offers excellent heat dissipation and service life.





     Key Features

       Provides high-power LED lamp beads combined with a highly focusing structure to achieve the illuminance of up to 1000K lux on the surface of light source.

       Improves the service life of the light source with a cooling fan on the enclosure.



       Supports flexible installation with multi-side nut slots.




    Naming Rule

    MV - LTDS - H - 100 - W

    LTDS: line-scan light

    H: Hikrobot style series

    100: emitting area length (mm)

    W: color (white, other customizable)







    　 Best working distance Dimension Emitting area dimension LED rows Weight Power Input voltage Connector type
    MV-LTDS-H-100-W 10 mm to 200 mm 150 mm × 58 mm × 90.5 mm 100 mm × 17 mm 1 1.09 kg 42 W 48 VDC 19M-8H
    MV-LTDS-H-200-W 10 mm to 200 mm 250 mm × 58 mm × 90.5 mm 200 mm × 17 mm 1 1.6 kg 84 W 48 VDC 19M-8H
    MV-LTDS-H-300-W 10 mm to 200 mm 350 mm × 58 mm × 90.5 mm 300 mm × 17 mm 1 2.11 kg 126 W 48 VDC 19M-8H
    MV-LTDS-H-400-W 10 mm to 200 mm 450 mm × 58 mm × 90.5 mm 400 mm × 17 mm 1 2.62 kg 168 W 48 VDC 19M-8H
    MV-LTDS-H-500-W 10 mm to 200 mm 550 mm × 58 mm × 90.5 mm 500 mm × 17 mm 1 3.14 kg 210 W 48 VDC 19M-8H
    MV-LTDS-H-600-W 10 mm to 200 mm 650 mm × 58 mm × 90.5 mm 600 mm × 17 mm 1 3.65 kg 252 W 48 VDC 19M-8H
    MV-LTDS-H-700-W 10 mm to 200 mm 750 mm × 58 mm × 90.5 mm 700 mm × 17 mm 1 4.16 kg 294 W 48 VDC 19M-8H
    MV-LTDS-H-800-W 10 mm to 200 mm 850 mm × 58 mm × 90.5 mm 800 mm × 17 mm 1 4.68 kg 336 W 48 VDC 19M-8H
    MV-LTDS-H-900-W 10 mm to 200 mm 970 mm × 58 mm × 90.5 mm 900 mm × 17 mm 1 5.19 kg 378 W 48 VDC Dual-channel 19M-8H
    MV-LTDS-H-1000-W 10 mm to 200 mm 1070 mm × 58 mm × 90.5 mm 1000 mm × 17 mm 1 5.71 kg 420 W 48 VDC Dual-channel 19M-8H
    MV-LTDS-H-1100-W 10 mm to 200 mm 1170 mm × 58 mm × 90.5 mm 1100 mm × 17 mm 1 6.22 kg 462 W 48 VDC Dual-channel 19M-8H
    MV-LTDS-H-1200-W 10 mm to 200 mm 1270 mm × 58 mm × 90.5 mm 1200 mm × 17 mm 1 6.73 kg 504 W 48 VDC Dual-channel 19M-8H
    MV-LTDS-H-1300-W 10 mm to 200 mm 1370 mm × 58 mm × 90.5 mm 1300 mm × 17 mm 1 7.25 kg 546 W 48 VDC Dual-channel 19M-8H
    MV-LTDS-H-1400-W 10 mm to 200 mm 1470 mm × 58 mm × 90.5 mm 1400 mm × 17 mm 1 7.76 kg 588 W 48 VDC Dual-channel 19M-8H
    MV-LTDS-H-1500-W 10 mm to 200 mm 1570 mm × 58 mm × 90.5 mm 1500 mm × 17 mm 1 8.27 kg 630 W 48 VDC Dual-channel 19M-8H
