구멍 면 조명 MV-LBES-H
| 제조사 | HIK ROBOT |
|---|---|
| 모델명 | 구멍 면 조명 MV-LBES-H |
| 다운로드 |
|
제품스펙
Hikrobot Style Flat Light With Hole MV-LBES-H Series
제품상세

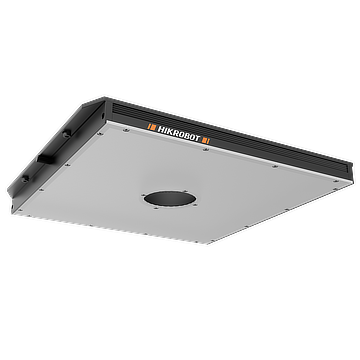

HIKROBOT MV-LBES-H Flat Light with Hole
MV-LBES-H flat light with hole, with opening design (circular hole/square hole) on the basis of standard flat light, achieves high brightness and uniform front lighting, which is available in models with a variety of dimensions.
Key Features
• Adopts high-density array LED design.
• Adopts middle opening design (circular hole/square hole) to achieve front lighting.
• Provides side mounting lugs to achieve flexible installation.
| Color | Dimension | Emitting area dimension | Bore dimension | Weight | Power | |
| MV-LBES-H-50-50-W | White | 82 mm × 63.2 mm × 19 mm | 50 mm × 50 mm | 20 mm × 20 mm | 0.2 kg | 2 W |
| MV-LBES-H-50-50-B | Blue | 82 mm × 63.2 mm × 19 mm | 50 mm × 50 mm | 20 mm × 20 mm | 0.2 kg | 1.91 W |
| MV-LBES-H-100-100-W | White | 132 mm × 113 mm × 18 mm | 100 mm × 100 mm | Ø40 mm | 0.3 kg | 11 W |
| MV-LBES-H-120-120-W | White | 152 mm × 133 mm × 18 mm | 120 mm × 120 mm | Ø40 mm | 0.4 kg | 16 W |
| MV-LBES-H-150-150-W | White | 182 mm × 163 mm × 18 mm | 150 mm × 150 mm | Ø45 mm | 0.5 kg | 25 W |
| MV-LBES-H-200-200-W | White | 232 mm × 213 mm × 18 mm | 200 mm × 200 mm | Ø45 mm | 0.8 kg | 48 W |
| MV-LBES-H-200-200-R | Red | 232 mm × 213 mm × 18 mm | 200 mm × 200 mm | Ø45 mm | 0.8 kg | 34 W |
| MV-LBES-H-250-150-W | White | 282 mm × 163 mm × 19 mm | 250 mm × 150 mm | Ø50 mm | 0.8 kg | 41 W |
| MV-LBES-H-250-200-W | White | 282 mm × 213 mm × 19 mm | 250 mm × 200 mm | Ø60 mm | 1 kg | 53 W |
| MV-LBES-H-250-250-W | White | 282 mm × 263 mm × 19 mm | 250 mm × 250 mm | Ø50 mm | 1.1 kg | 59 W |
| MV-LBES-H-250-250-R | Red | 282 mm × 263 mm × 19 mm | 250 mm × 250 mm | Ø50 mm | 1.1 kg | 48 W |
| MV-LBES-H-250-250-IR940 | Infrared | 282 mm × 263 mm × 19 mm | 250 mm × 250 mm | Ø50 mm | 1.1 kg | 52 W |
| MV-LBES-H-300-200-W | White | 332 mm × 213 mm × 19 mm | 300 mm × 200 mm | Ø50 mm | 1.2 kg | 54 W |
| MV-LBES-H-300-200-IR940 | Infrared | 332 mm × 213 mm × 19 mm | 300 mm × 200 mm | Ø50 mm | 1.2 kg | 43.2 W |
| MV-LBES-H-300-300-W | White | 338 mm × 315 mm × 21 mm | 300 mm × 300 mm | 80 mm × 80 mm | 2 kg | 74 W |
| MV-LBES-H-400-300-W | White | 438 mm × 315 mm × 21 mm | 400 mm × 300 mm | Ø50 mm | 2.7 kg | 83 W |
| MV-LBES-H-450-320-W | White | 488 mm × 335 mm × 21 mm | 450 mm × 320 mm | Ø70 mm | 3.2 kg | 198 W |
| MV-LBES-H-600-400-W | White | 676 mm × 430 mm × 25 mm | 600 mm × 400 mm | Ø50 mm | 7.2 kg | 174 W |
| MV-LBES-H-620-620-W | White | 696 mm × 650 mm × 25 mm | 620 mm × 620 mm | Ø50 mm | 10 kg | 267 W |
