면 조명 MV-LBSS-H
| 제조사 | HIK ROBOT |
|---|---|
| 모델명 | 면 조명 MV-LBSS-H |
| 다운로드 |
제품스펙
Standard Flat Light
제품상세

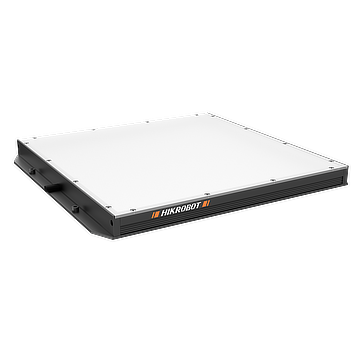

HIKROBOT MV-LBSS-H Standard Flat Light
MV-LBSS-H standard flat light adopts high-density array LED layout to provide high brightness, backplane light with large coverage.
With excellent lighting uniformity, it is available in models with a variety of dimensions.
Key Features
•Adopts high-density array LED design, and provides excellent lighting uniformity.
-
•Provides side mounting lugs to achieve flexible installation.
| Color | Dimension | Emitting area dimension | Weight | Power | |
| MV-LBSS-H-30-30-W | White | 62 mm × 43 mm × 18 mm | 30 mm × 30 mm | 0.09 kg | 2 W |
| MV-LBSS-H-50-30-W | White | 82 mm × 43 mm × 18 mm | 50 mm × 30 mm | 0.1 kg | 3 W |
| MV-LBSS-H-50-50-W | White | 82 mm × 63.2 mm × 18 mm | 50 mm × 50 mm | 0.15 kg | 4 W |
| MV-LBSS-H-80-80-W | White | 112 mm × 93 mm × 18 mm | 80 mm × 80 mm | 0.2 kg | 13 W |
| MV-LBSS-H-100-100-W | White | 132 mm × 113 mm × 18 mm | 100 mm × 100 mm | 0.3 kg | 21 W |
| MV-LBSS-H-120-120-W | White | 152 mm × 133 mm × 18 mm | 120 mm × 120 mm | 0.4 kg | 22 W |
| MV-LBSS-H-150-100-W | White | 182 mm × 113 mm × 18 mm | 150 mm × 100 mm | 0.45 kg | 25 W |
| MV-LBSS-H-150-150-W | White | 182 mm × 163 mm × 18 mm | 150 mm × 150 mm | 0.5 kg | 36 W |
| MV-LBSS-H-200-200-W | White | 232 mm × 213 mm × 18 mm | 200 mm × 200 mm | 0.8 kg | 66 W |
| MV-LBSS-H-250-150-W | White | 282 mm × 163 mm × 19 mm | 250 mm × 150 mm | 0.8 kg | 46 W |
| MV-LBSS-H-250-250-W | White | 282 mm × 263 mm × 19 mm | 250 mm × 250 mm | 1.1 kg | 52 W |
| MV-LBSS-H-300-200-W | White | 332 mm × 213 mm × 19 mm | 300 mm × 200 mm | 1.4 kg | 69.4 W |
| MV-LBSS-H-300-300-W | White | 338 mm × 315 mm × 21 mm | 300 mm × 300 mm | 2 kg | 77 W |
| MV-LBSS-H-350-250-W | White | 388 mm × 265 mm × 21 mm | 350 mm × 250 mm | 2 kg | 77 W |
| MV-LBSS-H-400-300-W | White | 438 mm × 315 mm × 21 mm | 400 mm × 300 mm | 3 kg | 110 W |
| MV-LBSS-H-400-300-R | Red | 438 mm × 315 mm × 21 mm | 400 mm × 300 mm | 3 kg | 92 W |
