    25 MP 1.1" CMOS 10 GigE Area Scan Camera

     제품상세

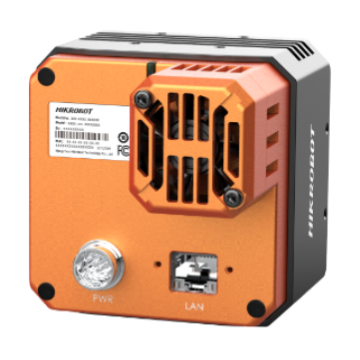

    MV-CH250-90TM

    25 MP 1.1" CMOS 10 GigE Area Scan Camera

    MV-CH250-90TC.png 20210810081424423.png

    Introduction



    Key Feature

    • Resolution of 5120 × 5120, pixel size of 2.5 μm × 2.5 μm.

    • Adopts 10 GigE interface providing maximum transmission distance of 100 meters.

    • Supports adjustment for exposure time, gain,Look-Up Table (LUT), Gamma correction, etc.

    •  Mounting holes on panels for flexible installation.

    • Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.


    Available Model

    Mono M58-mount with fan: MV-CH250-90TM-M58S-NF
    Mono C-mount with fan: MV-CH250-90TM-C-NF

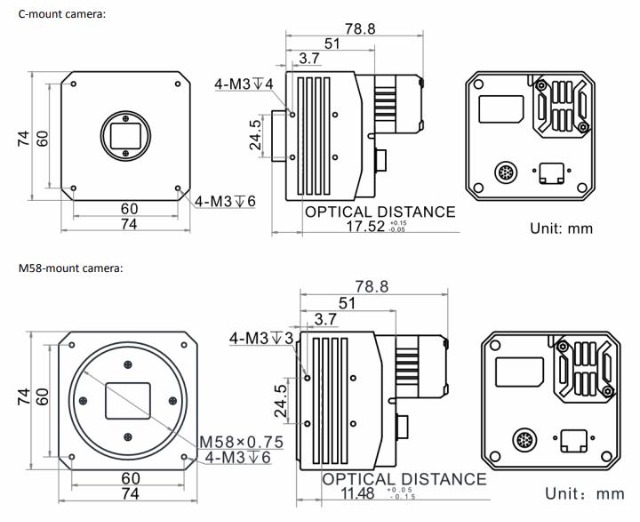

    Dimension









    Specifications

    Model Model MV-CH250-90TM
    Type 25 MP 1.1" CMOS 10 GigE Area Scan Camera
    Camera Sensor type CMOS, global shutter
    Sensor GMAX0505
    Pixel size 2.5 µm × 2.5 µm
    Sensor size 1.1"
    Resolution 5120 × 5120
    Max. Frame Rate 41.5 fps
    Dynamic range 63 dB
    SNR 36 dB
    Gain 2.0x to 5.0x
    Exposure time 13 μs to 10 sec
    Exposure mode Off/Once/Continuous exposure mode
    Mono/Color Mono
    Pixel format Mono 8/10/10p/12/12p
    Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Decimation Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
    Reverse image Supports horizontal and vertical reverse image output
    Electrical features Data Interface 10GigE
    Digital I/O 12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
    Power supply 9 VDC to 24 VDC
    Power consumption Typ. 9.7 W@12 VDC
    Mechanical Lens mount C-mount, optical back focal length 17.52 mm (0.7")
    M58-mount, optical back focal length 11.48 mm (0.5")
    Dimension 74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1")
    Weight C-mount camera: approx. 590 g (1.3 lb.)
    M58-mount camera: approx. 550 g (1.2 lb.)
    Ingress protection IP40 (under proper lens installation and wiring)
    Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F)
    Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
    Humidity 20% to 95% RH, non-condensing
    General Client software MVS or third-party software meeting with GigE Vision Protocol
    Operating system 32/64-bit Windows XP/7/10
    Compatibility GigE Vision V2.0, GenlCam
    Certification CE, FCC, RoHS, KC
