    The Basler acA720-520um USB 3.0 camera with the Sony IMX287 CMOS sensor delivers 525 frames per second at VGA resolution.

     제품상세

    acA720-520um - Basler ace

    The Basler acA720-520um USB 3.0 camera with the Sony IMX287 CMOS sensor delivers 525 frames per second at VGA resolution.

    USB3 Vision PGI

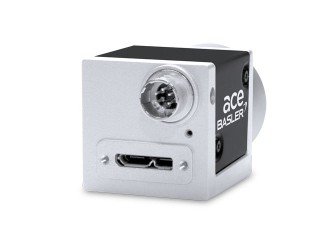

    ace_USB3_Sensor-small_Filter_f_l_670x500px__x250.jpg ace_USB3_b_l_670x500px__x250.jpg

    General Information

      Order Number 107654
      Product Line ace U
      Price For pricing, please use the request cart to get a quote.
      Shipment For information about shipping please use the request cart.

    Sensor

      Sensor Vendor Sony
      Sensor IMX287
      Shutter Global Shutter
      Sensor Format 1/2.9"
      Sensor Type CMOS
      Sensor Size 5 mm x 3.7 mm
      Resolution (HxV) 720 px x 540 px
      Resolution VGA
      Pixel Size (H x V) 6.9 µm x 6.9 µm
      Frame Rate 525 fps
      Mono/Color Mono

    EMVA Data

      EMVA Quantum Efficiency (typical) 63.2 %
      Dark Noise (typical) 2.9 e¯
      Saturation Capacity (typical) 20.7 ke¯
      Dynamic Range (typical) 74.2 dB
      Signal-to-Noise Ratio (typical) 43.2 dB

    Camera Data

      Interface USB 3.0
      Pixel Bit Depth 8/12 bits
      Synchronization
    • hardware trigger
    • free-run
    • software trigger
      Exposure Control
    • programmable via the camera API
    • hardware trigger
      Digital Input 1
      Digital Output 1
      General Purpose I/O 2
      Power Supply
    • Via USB 3.0 interface
      Power Requirements (typical) 3 W

    Housing

      Housing Type Box
      Housing Size (L x W x H) 29.3 mm x 29 mm x 29 mm
      Lens Mount
    • C-mount
      Operating Temperature 0 - 50°C
      Weight (typical) 80g

    Conformity

      Conformity
    • RoHS
    • FCC Class B
    • CE
    • IP30
    • GenICam
    • USB3 Vision
    • UL
    • KC
    • EAC

    Features

      Chunks
      Event Reporting
      I/O Control and Line Source Signals
      Image Acquisition Control
      Light Control Features
      Miscellaneous
      PGI
      Pixel Formats
      Standard Features

    Mechanical drawing for acA720-520um

    Mechanical drawings provide the detailed measurements of a camera product. Click on the link below to download the mechanical drawing for acA720-520um.

    Download now Basler ace - acA720-520um
